KAI Soil Kit
Welcome to the cultivation station.

What Can This Kit Measure?

KAI streamlines the creation of a thriving environment. Effortlessly automate devices, utilizing your probe's parameters, to achieve optimal plant growth and health.

Acidity (pH)

Dielectric Permittivity (DP)

Ground Moisture

Humidity

Air Temperature

Ground Temperature

PAR (In-app)

Lumens (In-app)

Grow Like a Pro

One Controller For All Your Needs

KAI allows for virtually limitless probe connections, so one controller is all you need to automate multiple enclosures. Simultaneously monitor your ecosystems and utilize probe values to automate devices.

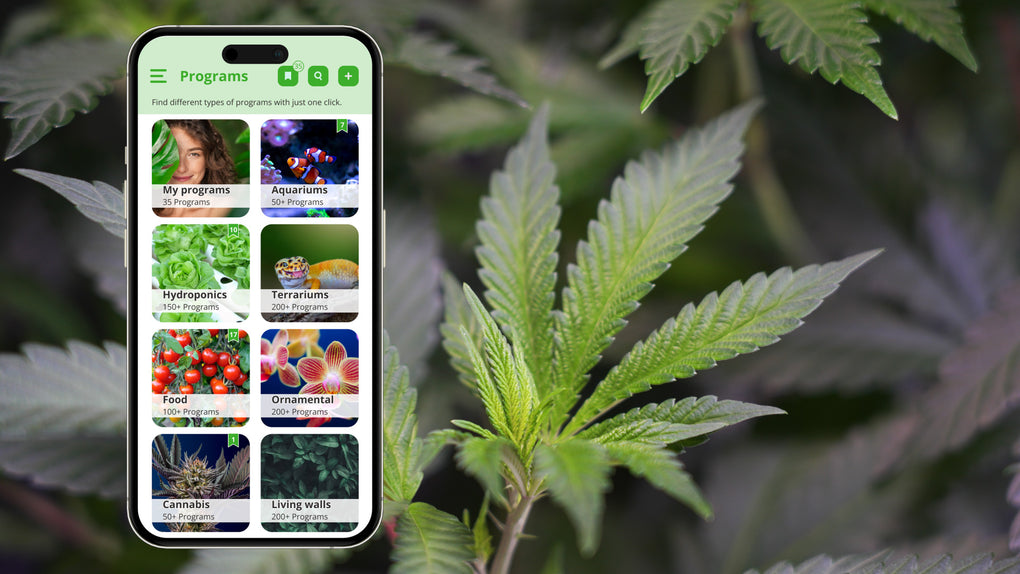

KAI Has Automation Styles For Every Desire

Slide to view more →

Timers

Turn devices On/Off based on the time of day.

Cycles

Turn devices On a set number of times within an "active" period.

Sensor Control

Use devices to maintain a sensor's specified range.

Events

Turn device On/Off based on a single sensor value.

Scenarios

Preset device functionality for any task. All automations return to normal after time expires.

Dosers

Calibrate any peristaltic pump for automatic dosing.

Alarms

Set notifications based on sensor values.

Programs

Presets to automate your whole ecosystem with one tap.

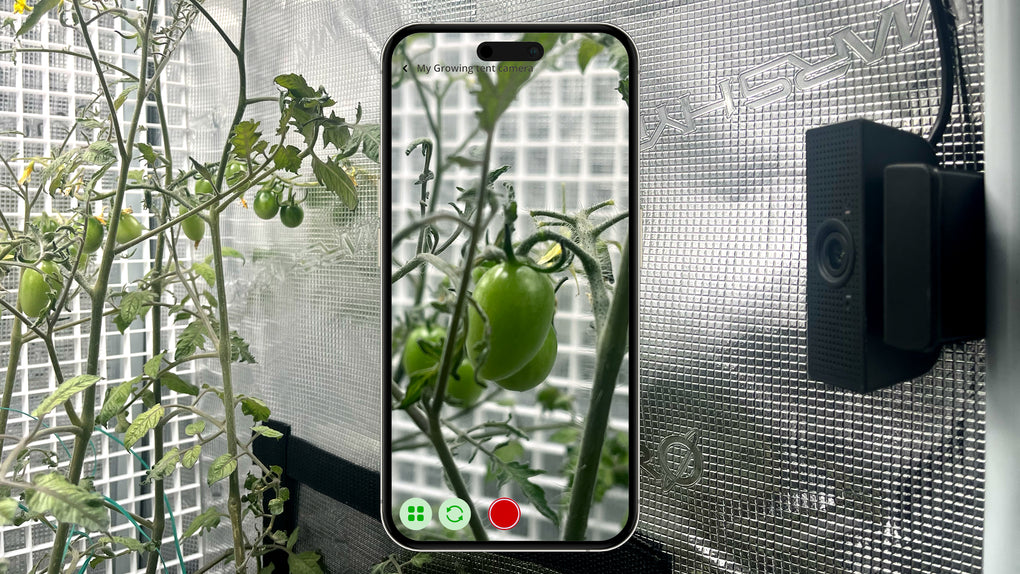

Never miss a moment.

Check in on your system from anywhere. Whether you want to show off your plants, or have an emergency situation, the Felix Smart camera has you covered.

• Save photos and videos
• Connect unlimited cameras
• Timelapse the growth of your plants

Create Stunning Timelapses With Ease

Understand your ecosystem.

Utilize historical data to ensure the health of your plants and isolate favorable characteristics. With KAI, you can grow plants according to your preferences in taste, texture, smell, and more!

Grow where no one has grown before.

Take your growing to the next level, regardless of where you're starting from. The KAl Soil Kit is available now!

Grow Like a Pro

What's In The Box?

Slide to view more →

KAI Controller & Power Cable

Felix 1080 Camera

Ground pH Probe

A Felix Smart Air Temperature and Humidity Sensor.

Air Temperature & Humidity Sensor

A Felix Smart Moisture and Temperature Probe.

Ground Moisture & Temperature

Ethernet Dongle

"I've had so many people that have been wanting to get an "auto-watering system" ... This makes it so that you could actually have an indoor auto watering system that's going to treat your plants properly."

Stan Kemp, Owner @ Ugrow

Calgary, Alberta

Detailed Specifications

Material	ABS Flame Retardant
A/C Plug Input	100-240V~, max 10A
A/C Plug Output	100-240V~, total 9A
USB Output	5V, 2.0A
Total Max Watts:	North America: 1100W
Grounded Sockets	8
Size (L x W x H)	28.5cm x 16.8cm x 13.7cm (11.2" x 5.4" x 6.6")
Available USB Ports	6 - Expandable up to 30 using powered USB hubs
Certifications	CE, FCC, ROHS
Intended Use	For indoor use only
Waterproof	Not Waterproof

Resolution	Full HD 1080P - 1920 x 1080P @ 30fps
Compression	H.264, MJPEG
Microphone	Disabled
Temperature Range	0ºC - 70ºC (32ºF to 158ºF)
Water Use	Not Waterproof
Intended Use	Indoors, outside of high humidity spaces.
Connector	USB
Cable length	1.2 meters (4.5 ft) Extendable to 25 ft with a USB Extension.
Mounts	1/4in – 20 UNC, Adjustable swivel and Velcro.
Certifications	FCC, CE, ROHS

Material	Silver / Silver Chloride
Reads	pH
Range	0 - 14
Resolution	+/- 0.001
Accuracy	+/- 0.002
Response Time	95% in 1s
Temperature Range	-5°C to 110°C (23°F to 230°F)
Max Pressure	689 kPa (100 PSI)
Max Depth	70m (230 ft)
Connector	Felix Smart USB
Cable Length	1 meter (~39")
Internal Temperature Sensor	No
Time Before Recalibration	~1 Year
Life Expectancy	~10 Years

Material	Stainless Steel, ABS
Reads	EC, TDS, Ground Moisture, Temperature, Water Presence
Temperature Range	-20ºC to 70ºC (-4ºF to 158ºF)
Electrical Conductivity (mS/m)	0 - 300 mS/m
Degree of Water Saturation in Soil	0 - 100% Volumetric Water Content from Dielectric Permittivity: ε.VWC = 0.002974 * pow(ε,2) + 0.07424 * ε -1.295 : 0 - 100% /8%
Dielectric Permittivity (ε) (Temperature corrected)	1 (Air) : 80 (Water) / 5%
Total Dissolved Solids (ppm)	0 - 2000 ppm
Max Pressure	689 kPa (100 PSI)
Max Depth	70m (230 ft)
Connector	Felix Smart USB
Cable Length	2.7m (9 ft)
Time Before Recalibration	~ 2 Years
Water Use	Waterproof

Material	ABS
Reads	Air Temperature, ~Humidity and Light
Humidity Range	0-100% RH
Humidity Accuracy	+/- 2% RH
Temperature Range	0°C to 70°C (32°F to 158°F)
Temperature Accuracy	+/- 0.5°C
Light Sensor	Photocell
Connector	Felix Smart USB
Cable Length	2.7 meters (9 ft)
Water Use	Not Waterproof
Intended Use	Indoors or Enclosures
